Spring Lift Trolleys – JFC Material Handling

JFC Spring Lift Trolleys are tough, durable and surprisingly lightweight to use, even with heavy loads.

JFC offer a variety of spring lift trolleys, all spring lift trolleys are made from impact resistant polyethylene and are available bespoke to your design requirements. JFC spring lift trolleys are available in a full range of colour options and are suitable for use within a variety of sectors.

Features

Excellent manoeuvrability
Impact resistant polyethylene
Hygienic and easy to clean
Single moulded unit
Complete with swivel/braked caster wheel

SLT01

The SLT01 spring lift trolley is manufactured from high quality, impact resistant polyethylene. The SLT01 operates via a tensions adjustable spring lift mechanism which allows the operator to remain upright thereby reducing risk of back strain and associated injuries. All JFC spring lift trolleys are available with either 4 corner or diamond formation castor wheel arrangement. The SLT01 has excellent manoeuvrability and is available in variety of colour options.

External Dimensions

Length
Width
Height
1650mm
950mm
850mm

Internal Dimensions

Length
Width
Height
1530mm
845mm
420

Other Features

Capacity
543L

Castor Size
150mm

Castor Type
NY

Colour Options

Datasheet Enquire

Close Product Details

SLT02

The SLT02 spring lift trolley is manufactured from high quality, impact resistant polyethylene. The SLT02 operates via a fixed tension, spring lift mechanism which allows operator to remain upright thereby reducing risk of back strain and associated injuries. All JFC spring lift trolleys are available with either 4 corner or diamond formation castor wheel arrangement. The SLT02 has excellent manoeuvrability and is available in variety of colour options.

External Dimensions

Length
Width
Height
1090mm
695mm
885mm

Internal Dimensions

Length
Width
Height
120mm
590mm
640/730

Other Features

Capacity
385L

Castor Size
100mm

Castor Type
P/N

Colour Options

Datasheet Enquire

Close Product Details

SLT03

The SLT03 spring lift trolley is manufactured from high quality, impact resistant polyethylene. The SLT03 operates via a tensions adjustable spring lift mechanism which allows operator to remain upright thereby reducing risk of back strain and associated injuries. All JFC spring lift trolleys are available with either 4 corner or diamond formation castor wheel arrangement. The SLT03 has excellent manoeuvrability and is available in variety of colour options.

External Dimensions

Length
Width
Height
1200mm
685mm
795mm

Internal Dimensions

Length
Width
Height
1020mm
605mm
475

Other Features

Capacity
293L

Castor Size
100mm

Castor Type
P/N

Colour Options

Datasheet Enquire

Close Product Details

SLT04

The SLT04 spring lift trolley is manufactured from high quality, impact resistant polyethylene. The SLT04 operates via a fixed tension, spring lift mechanism which allows operator to remain upright thereby reducing risk of back strain and associated injuries. All JFC spring lift trolleys are available with either 4 corner or diamond formation castor wheel arrangement. The SLT04 has excellent manoeuvrability and is available in a variety of colour options.

External Dimensions

Length
Width
Height
1830mm
1180mm
1110mm

Internal Dimensions

Length
Width
Height
1760mm
1100mm
820

Other Features

Capacity
2400L

Castor Size
150mm

Castor Type
NY

Colour Options

Datasheet Enquire

Close Product Details

Trolleys can be customised to customer specification:

Colour coding for ease of identification
Varying castor sizes and types
Available in conductive or food grade materials
Suitable for use with chemicals & detergents

ENQUIRE NOW

Castor Wheel Arrangements

Castor wheels are available in diamond or 4 corner formationsfor this trolley range.

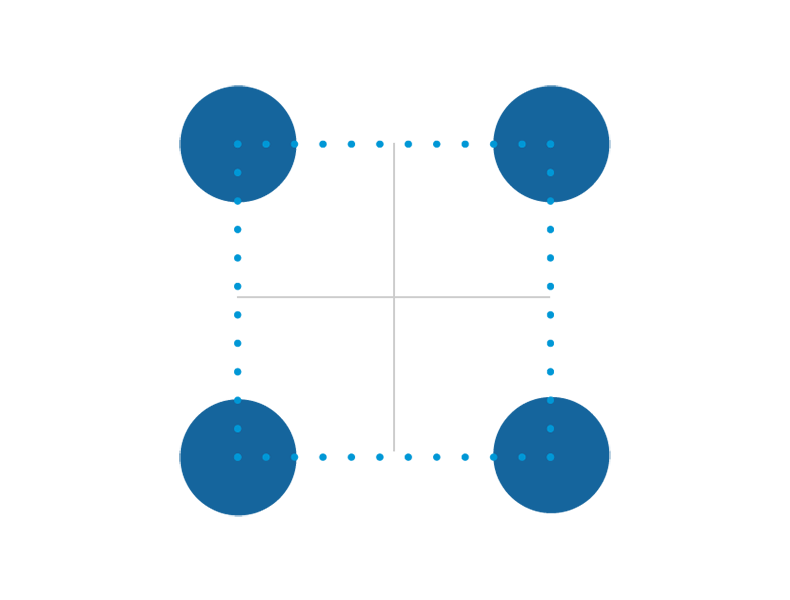

4 Corner: Push/Pull great when moving in any direction

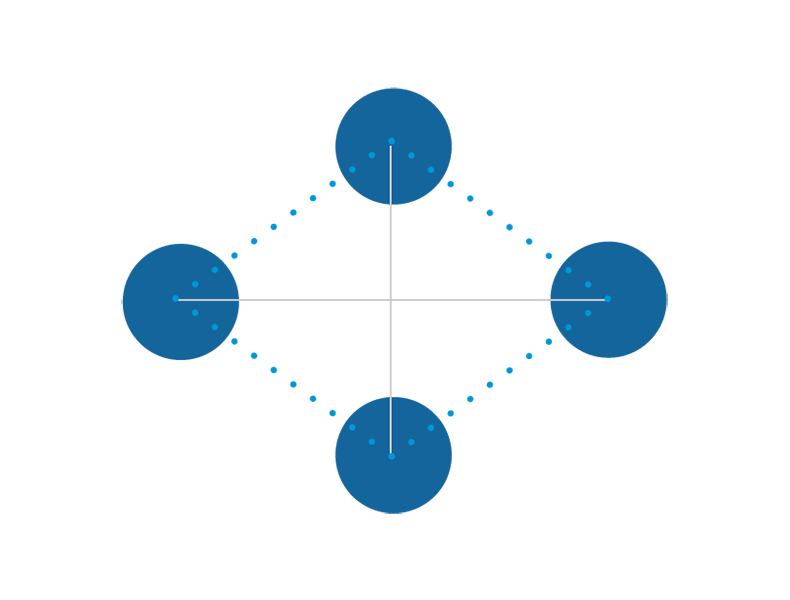

Diamond: Allows for great handling on uneven surfaces
Castors available in sizes: 100mm, 125mm, 150mm
